Renogy 400 Watt 12 Volt Premium 4 Pcs 100W Panel+40A MPPT Charge Controller+ Bluetooth Module Fuse+ Mounting Z Brackets+Adaptor Kit +Tray Cables Set, 400W, Grid 12V Solar Power System

Renogy 400 Watt 12 Volt Premium 4 Pcs 100W Panel+40A MPPT Charge Controller+ Bluetooth Module Fuse+ Mounting Z Brackets+Adaptor Kit +Tray Cables Set, 400W, Grid 12V Solar Power System

Name: Renogy 400 Watt 12 Volt Premium 4 Pcs 100W Panel+40A MPPT Charge Controller+ Bluetooth Module Fuse+ Mounting Z Brackets+Adaptor Kit +Tray Cables Set, 400W, Grid 12V Solar Power System
SKU: 25403
Availability: InStock

Original price was: $649.99.Current price is: $520.99.

Add to compare

Add to wishlist

Best Deal

We have found the best deal on Amazon

Free & easy returns

Return this item by mail or in store within 90 days for a full refund.

Description

Close

Price: ~~$649.99~~ - $520.99

(as of Mar 11, 2026 23:57:47 UTC –

Details
)

Product description

Which Renogy Solar Kit Is The Best Solution For You?

Add to Cart

Customer Reviews

4.5 out of 5 stars 1,921

4.6 out of 5 stars 6,130

Price

$520.99$520.99

$394.99$394.99

—

$615.99$615.99

Solar Panel

4 x 100 Watt Monocrystalline

4 x 100 Watt N-Type

2 x 100 Watt N-Type

Charge Controller

Rover Li 40A MPPT

Adventurer 30A PWM

Rover Li 40A MPPT

Wanderer 30A PWM

Mounting Z Brackets

4 Set

2 Set

Solar Connectors MMF+FFM Pair

3 Pairs

1 Pairs

Cable Entry Housing

✘

✔

✘

Renogy BT-1 Bluetooth Module

✔

✘

Fuse Cable

✔

✘

10A Fuse and 40A ANL Fuse

✔

✘

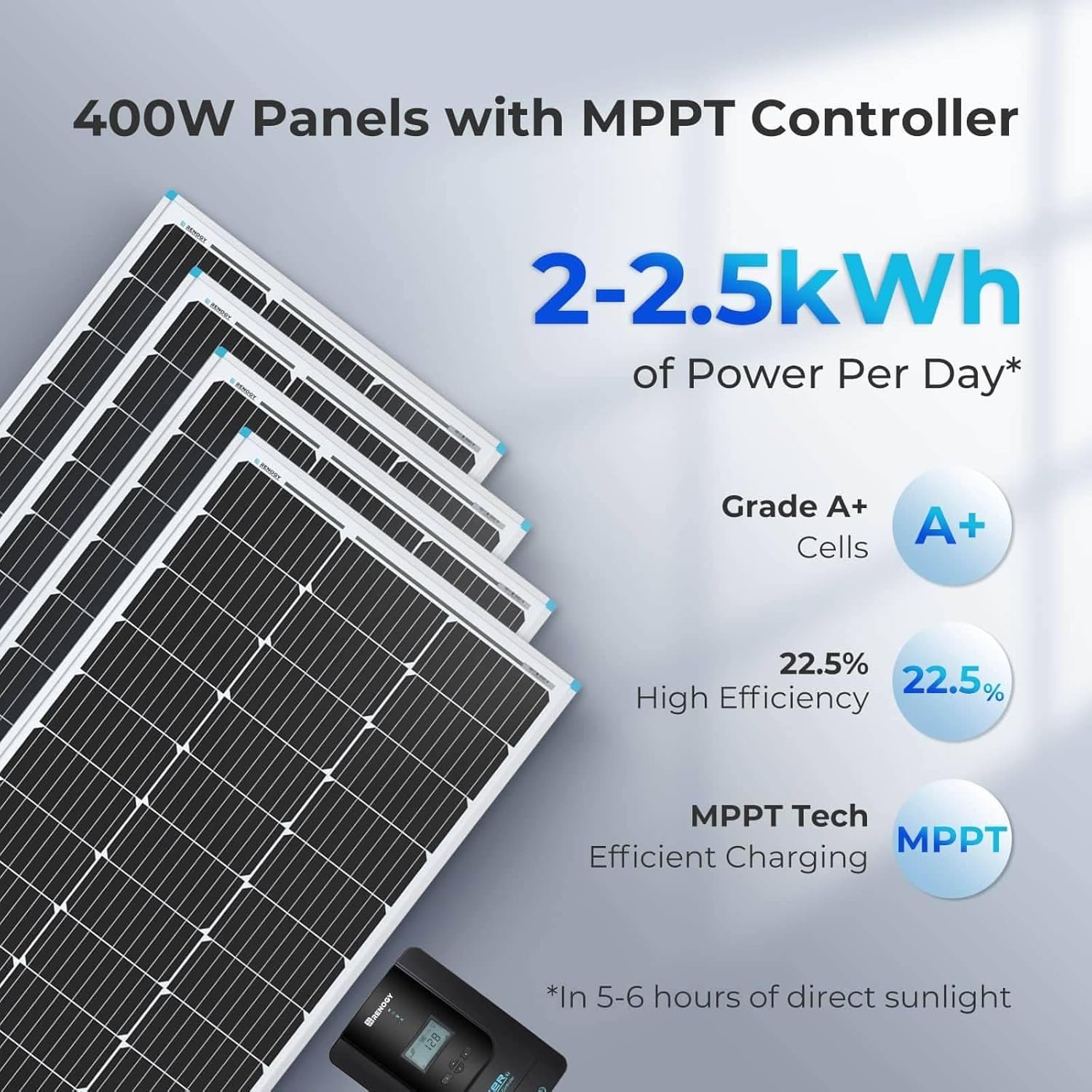

【Superior Generation & Long-Term Warranty】The Premium Kit will deliver a daily output of 2-2.5kWh (varies with sunlight) using 100% EL-tested Grade A+ Solar Cells at 22.5% efficiency. Backed by a 10-year panel material and workmanship warranty and a 3-year MPPT controller warranty for worry-free enjoyment.

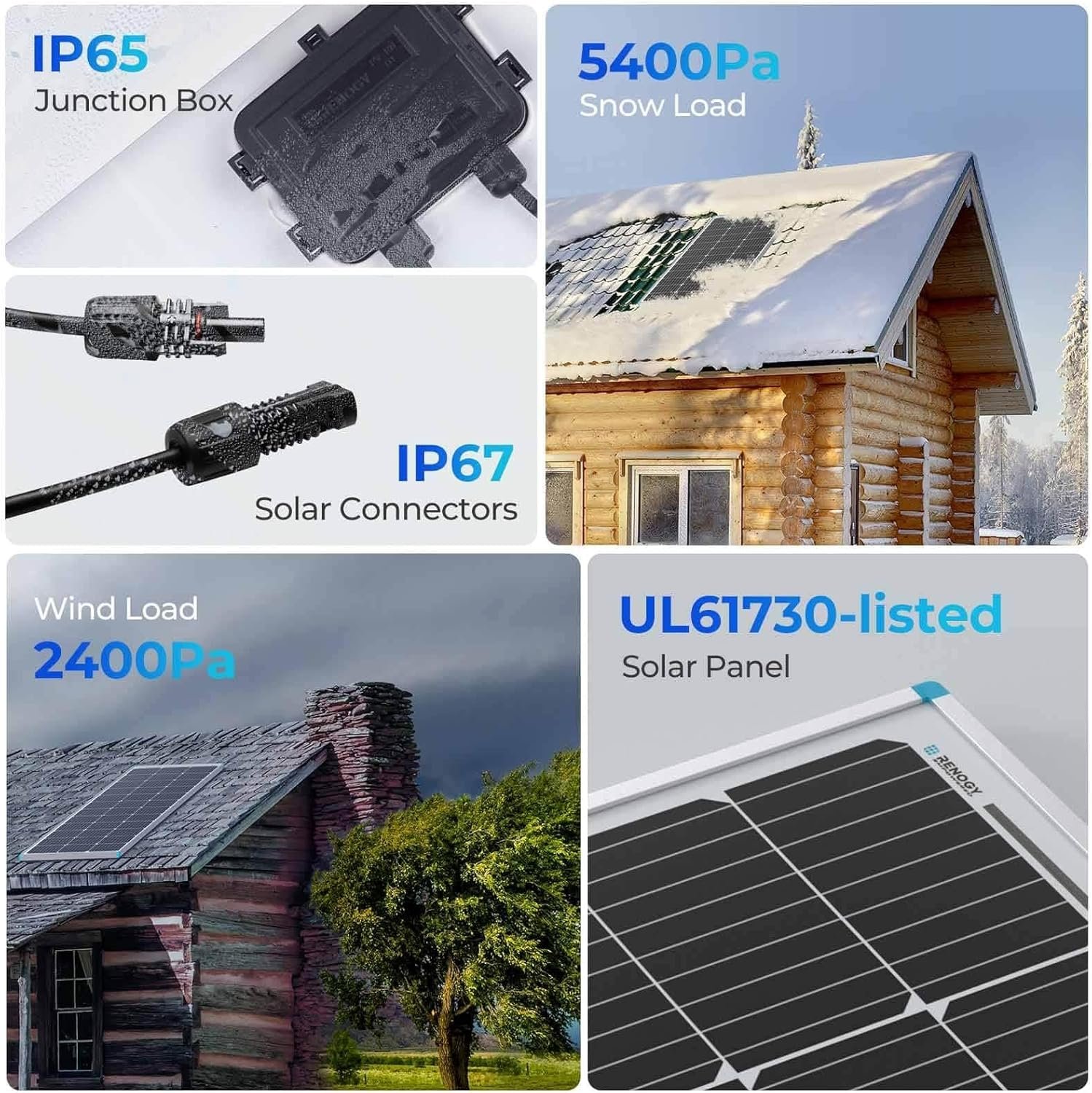

【Sturdy & Easy Setup】With a robust 3.2mm low-iron glass surface and a wider 35mm aluminum alloy frame, the solar panels endure high wind (2400Pa) and snow loads (5400Pa). The Premium Kit includes panels with pre-drilled holes, Z brackets, Y branch connectors, and ready-to-use wiring for easy installation.

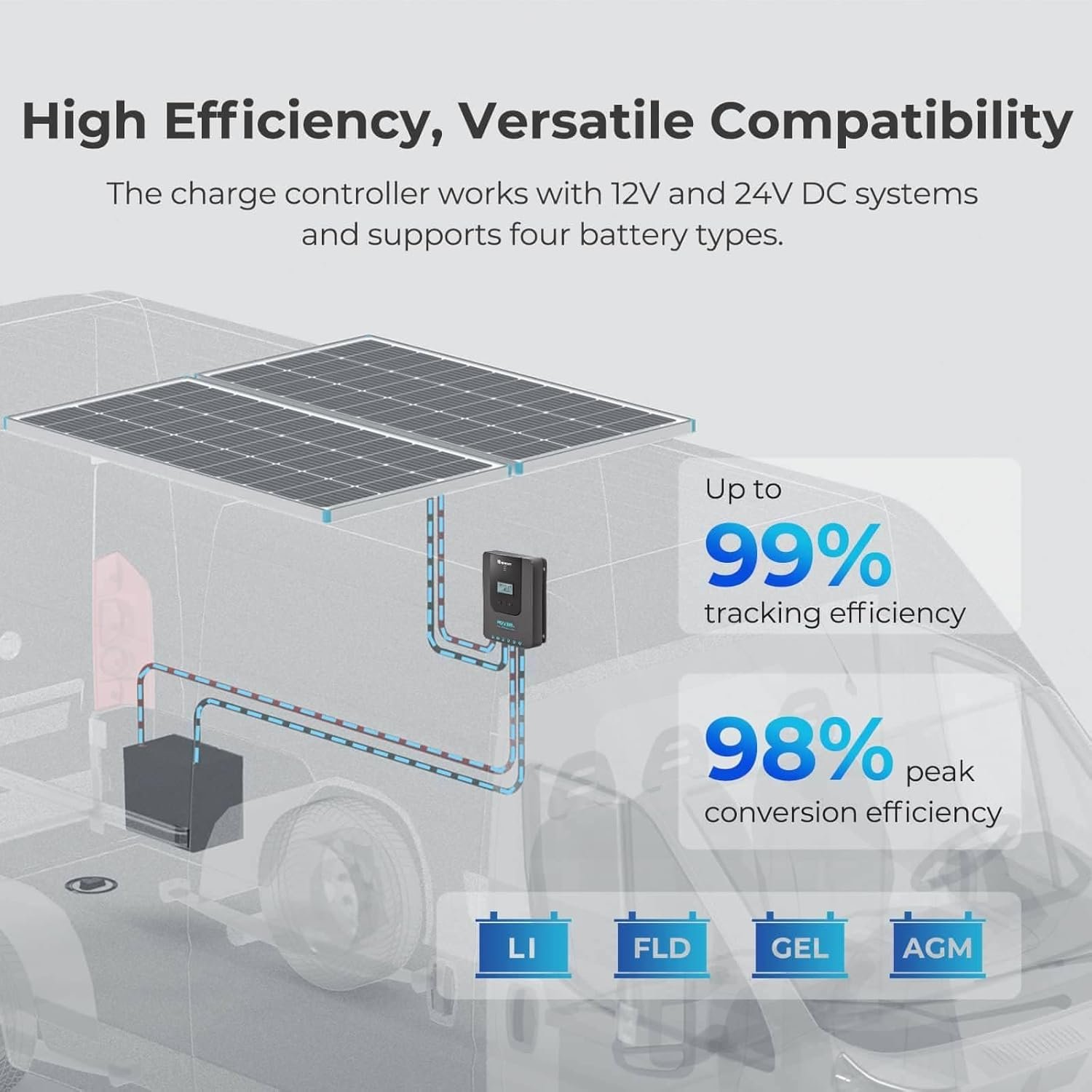

【Efficient MPPT Technology】Renogy’s certified MPPT charge controller boasts 99% tracking efficiency and 98% peak conversion efficiency, outperforming traditional PWM controllers by 30%. The included temperature sensor adjusts input voltage based on battery temperature, preventing under-charging and overcharging.

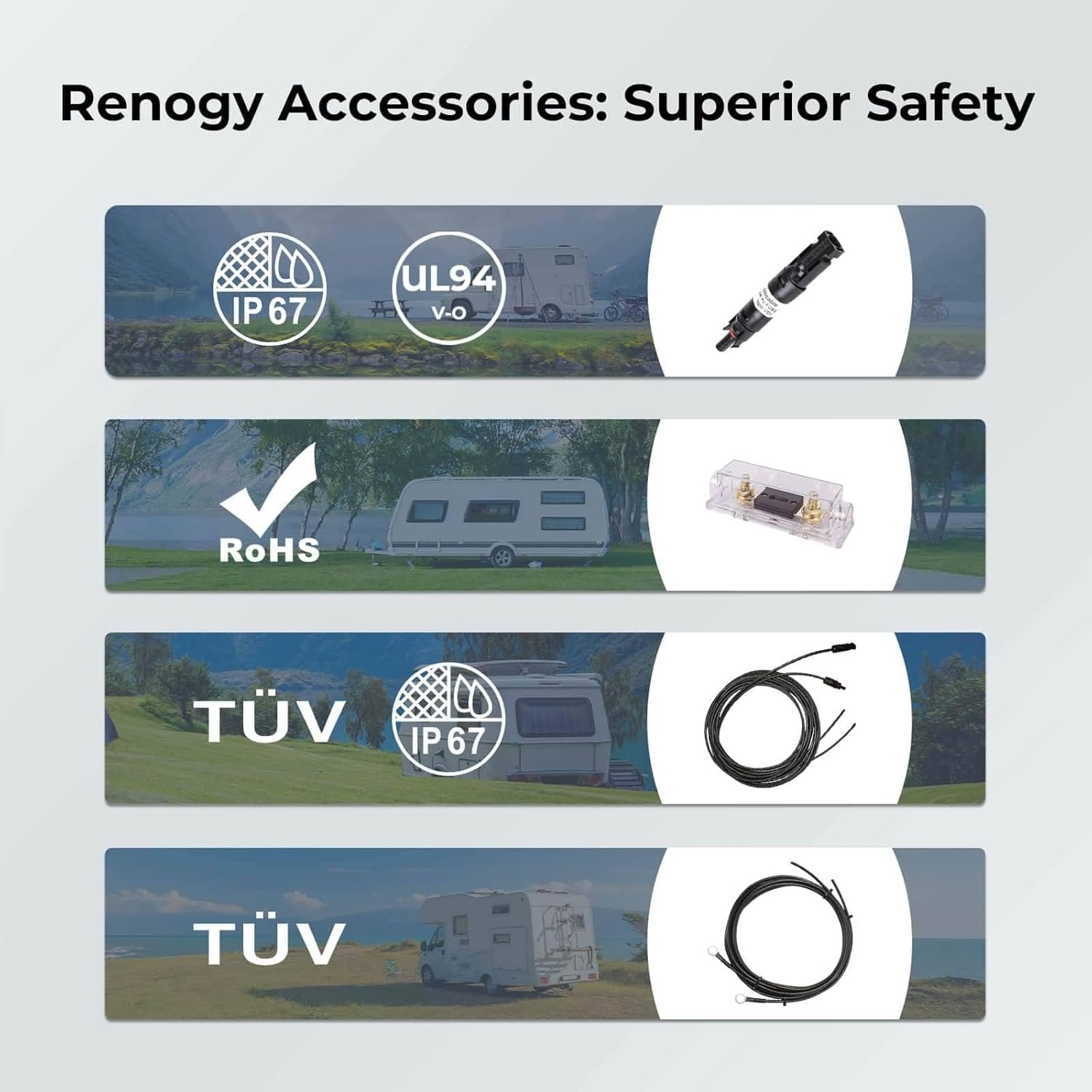

【Complete System Safety】Beyond the comprehensive protection ensured by the MPPT charge controller, In-line and ANL fuses offer overcurrent protection for solar panels, controller, and battery. Wide-diameter cables further reduce power loss and the risk of overheating, providing an additional layer of safety.

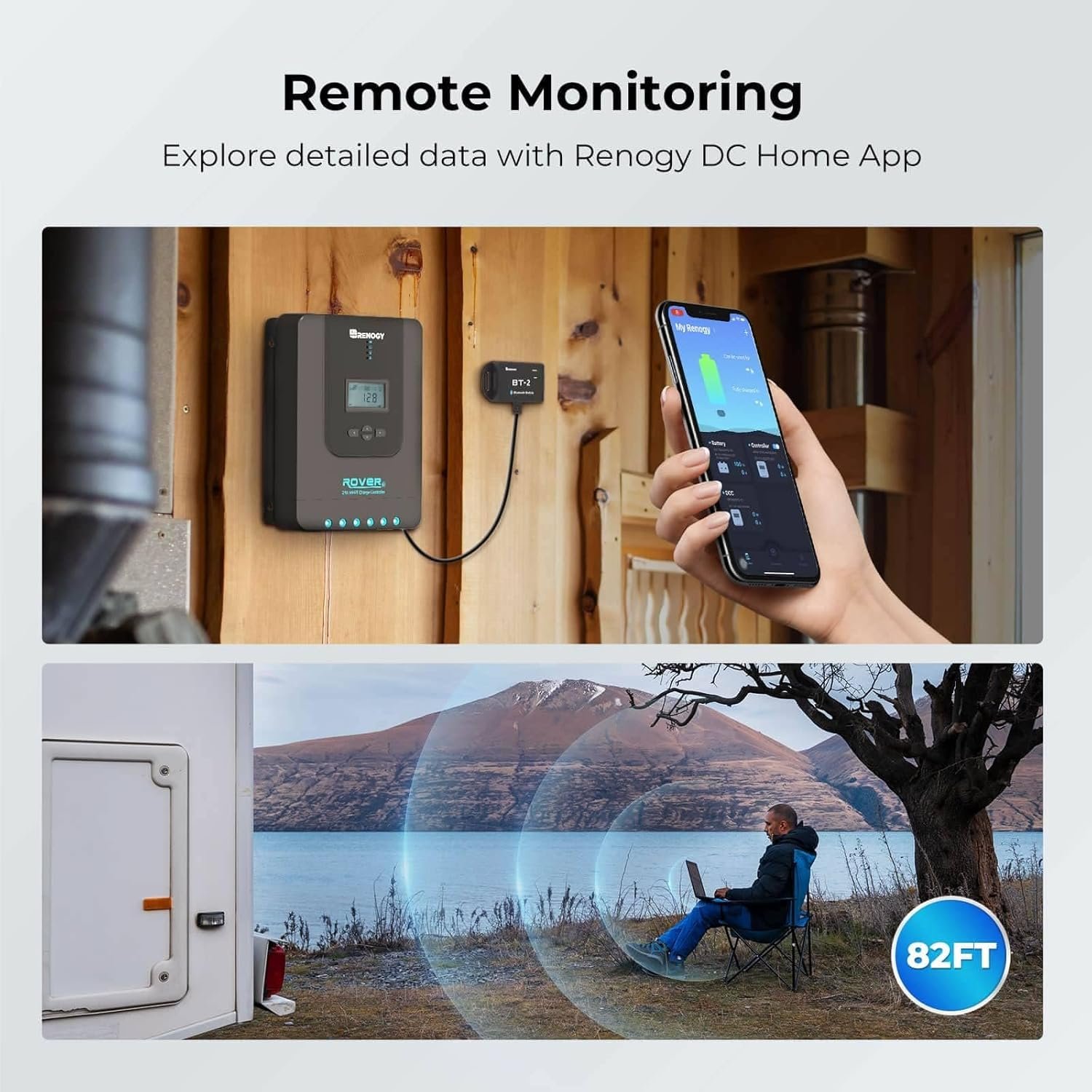

【Monitor & Modify from Your Phone】Effortlessly monitor your system with the BT-1 Bluetooth module (RS232). It pairs with the controller, offering real-time data on your controller, battery, and load. Adjust controller parameters, such as boost voltage, through the Renogy DC Home App. Enjoy a signal range extending up to 82 feet (25m).
Max Battery Voltage: 32V

Additional information

Close

Brand	Renogy
Material	Monocrystalline
Product Dimensions	41.8"L x 20.9"W x 1.38"H
Item Weight	56.4 pounds
Efficiency	High Efficiency

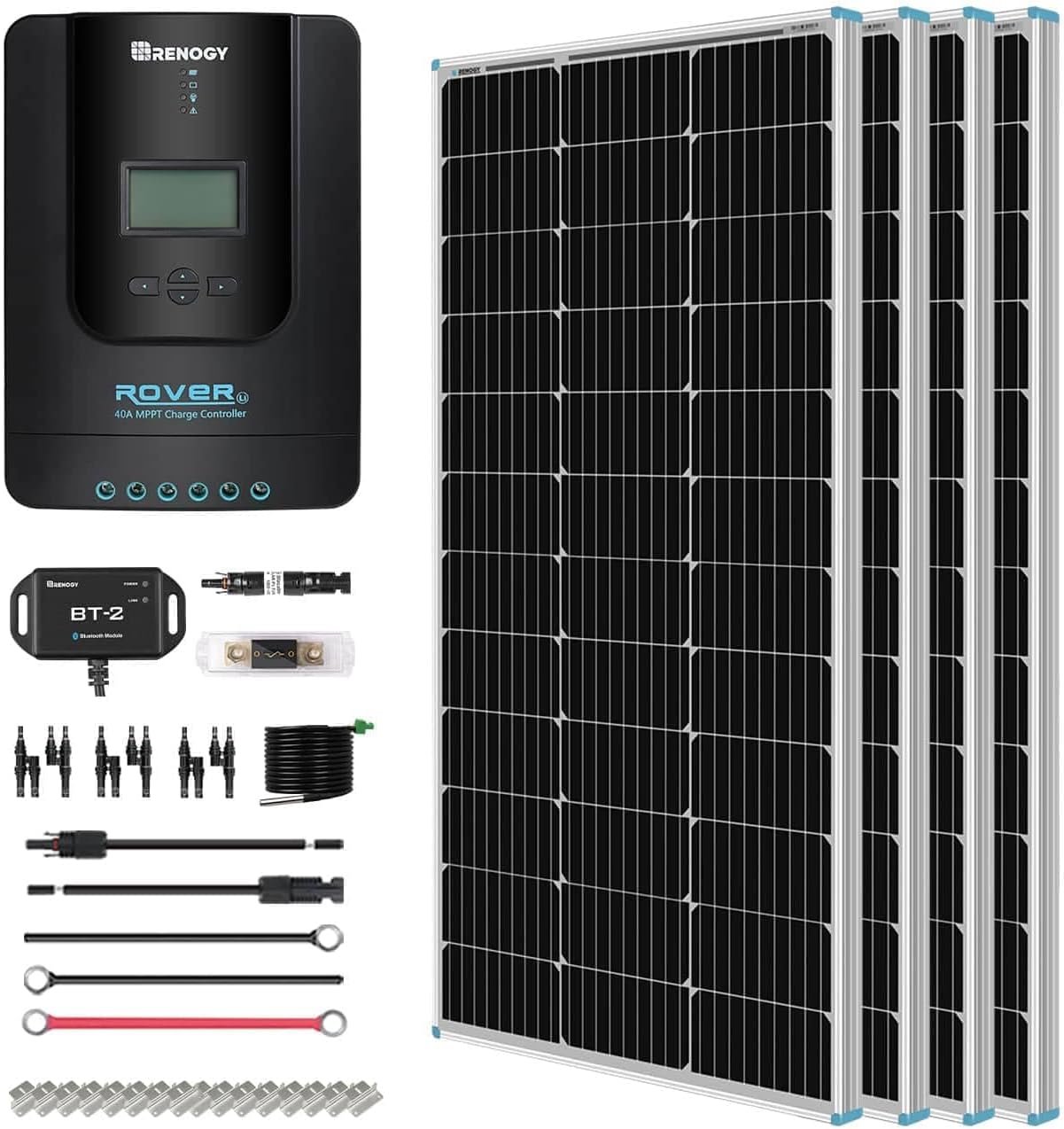

Included Components	(1) Renogy 400 Watt 12 Volt Monocrystalline Solar Panel (2) 40A MPPT Rover Controller(3)Z-Brackets(4)Adaptor Kit(5)Tray Cable, (6) Bluetooth Module
Maximum Voltage	12 Volts
Maximum Power	100 Watts
Special Feature	Superior Generation & Long-Term Warranty, Sturdy & Easy Setup, Efficient MPPT Technology, Complete System Safety, Monitor & Modify from Your Phone
UPC	816360028062
Global Trade Identification Number	00816360028062
Output Voltage	12 Volts
Manufacturer	Renogy
ASIN	B07CTKT56Y
Item model number	400 Watt 12 Volt
Is Discontinued By Manufacturer	No

Reviews

10 reviews for Renogy 400 Watt 12 Volt Premium 4 Pcs 100W Panel+40A MPPT Charge Controller+ Bluetooth Module Fuse+ Mounting Z Brackets+Adaptor Kit +Tray Cables Set, 400W, Grid 12V Solar Power System

Jerd

March 11, 2026

This is a great kit. It comes with almost everything you need. Fuses, wiring, controller, mounts, panels and all the bolts and screws you need. I had to buy a solar array disconnect switch separately. The system took me about 6 hours to install. Most of that time was spent fishing wires through my camper walls. I wired the panels in 2 series, 2 parallel. Once hooked up I put my camper in a sunny area and was getting 260 watts, will work even better in full sun. Not bad given there was some small shaded areas on the panels and they are laying flat. Don't expect to get 400 watts unless your panels are directly facing full sun. That is how solar works. I bought the BL1 Bluetooth as well and it is awesome for monitoring the system which I have hidden out of sight. I can camp anywhere for any amount of time now with no shortage of power. Great value for the money. There are no instructions. If you don't know what you are doing, pay someone who does or educate yourself accordingly.

Lee

March 11, 2026

Comes with everything needed for installation. It works as advertised. Would recommend having a technician do the install.

Tori

March 11, 2026

This came with everything we needed. We wired the solar panels in series, because the MPPT controller is able to fix to voltage to 12V. The controller is a great bit of kit - it gives you lots of information, including temperature, % charge of battery, voltage from solar panels etc. It can also be connected to the PC for further analysis. This kit contains everything you need to have a really effective solar panel kit.

Cliente Amazon

March 11, 2026

Nel kit mancano le prese di diramazione Y-plug per collegare i pannelli

Mark Van Ek

March 11, 2026

I was surprised with the lack of installation & wiring instructions in the kit. I had to rely on wiring diagrams found on a Google search. I wired the panels in series (not parallel) and was getting 70V on a cloudy day only to find out that the Adventurer charge controller that came with the kit can only handle a max PV input voltage of 50V. There was nothing in the kit to advise series vs parallel and apparently if I had wired the panels in parallel then the controller it may have worked. In hind site I should have wired the panels in parallel but changing the panel mounting and wiring is not an option for me anymore so I have ordered the Rover 40A MPPT charge controller, which can handle 100V PV input voltage.

John Bell

March 11, 2026

Good basic starter system. I purchased this kit to put rooftop solar on my 16' travel trailer. It took some research on the Renogy website to figure out the wiring for proper installation, but I'm pretty handy and was able to figure it out just fine.My trailer has 2x100 amp-hour LiFePO4 batteries wired in parallel. Our electrical demands when dry-camping are not all that large. We don't have an inverter and only run the 12 volt stuff when 30amp AC power is not available. This means interior and exterior lights, water pump, heater, fans, and the propane fridge. We the most we ever run down our batteries is to about 85% state of charge by each morning.On a sunny day, we're 100% within a couple of hours and cloudy days or sites with little sun, we almost always recover fully by sundown.I did not use the included mounts for the solar panels because I was not comfortable drilling my camper roof and using well nuts (not included). Instead I used the Renogy Corner Bracket Solar Panel Roof Drill-Free Mount for RV with 3M VHB tape which works the charm.For my set-up there was plenty of wire between the panels and charge controller. However, in order to reach from the charge controller to my battery bank it was necessary to purchase some 8AWG wire as the included cables were simply too short to reach the needed distance.The bluetooth app is nice to see how the panels are performing, but it's not absolutely necessary since all the info other than the history is available on the display on the controller. Be aware you need a shunt (not included) to actually monitor state of charge.All in all I'm pretty happy with this system. We just returned from a 31 day, 4400 mile trip with our trailer and I never had to worry about my batteries at all. We always had more than enough power to do everything we need to do.

Amazon Customer

March 11, 2026

Good, complete system I've purchased Renogy products for other applications. Given the overall quality, it's time to do it again. The kit was pretty much as expected. It does the job and works well. I have a few things to criticize:1) The wiring from the panels to the controller is a bit short. I installed this system on a class A motorhome. The wiring from the roof, down the rear cap, into the electrical box just barely reached. Another meter would be just fine.2) The 30 amp fuse block is a bit big and clunky. It was hard to find a place to mount it so that all the wiring worked out.3) There was an extra 10 amp fuse included with panel style connectors on it. Had no idea where to put it as it is underrated for the combined output of the panels.4) No instructions! Good thing I'm an electrical engineer and know what to do with this stuff. Only the controller had instructions of any kind.5) The BT-1 remote monitor accessory is a joke. It can't be paired correctly, and takes a long time to get connected and display anything. All I want to do is see what the battery level is and how much current is being pushed. A simpler hardwired panel would be much better and faster to use.Overall, a good value. I'd recommend this to others.

Alex

March 11, 2026

Great entry to mid level solar kit Renogy, the name in serious solar! Renogy was my gateway into hobby solar. I started with this 400 watt kit as an entry level, but it seriously was more than I expected. My batteries charge quickly and are very happy. It's currently deployed in a garden shed for tool battery charging and for exterior lights. Installation was easy. Setup was a breeze. The app leaves a little more to be desired but it's informative and easy to use. The built in functionality will keep you engaged. With little sun exposure on cloudy days, these small panels are rocking and still providing enough amps to keep the batteries happy. The cables included in this kit are of high quality. Mounting the controller was easy. The kit came with temp sensor and Bluetooth module which is great. When the panels are completely exposed to the sun, I taken my batteries from nearly dead to full charge in a few hours while using them for gardening. If you're looking for a hobby system for home use, a small system for off-grid applications, look no further! This is your last stop.

Paul

March 11, 2026

Great setup Great system, after 3 yrs no problems whatsoever. Keeps me charged up. Perfect for a simple off grid application for a decent value.

Grant

March 11, 2026

Unbeatable Value These are infinitely better than expensive grid tie arrays. Easy install just plug and play. Ive actually got 700 watts up in series-parallel. My roof pitch faces east and west so I have 3 to catch the morning sun and 4 to catch the afternoon sun. Working great the voltage is about maxed out around noon in the summer but I think the mppt keeps it low enough. Got it hooked up to a 400ah battery. Powers a 6000btu window ac all day or a 500 watt space heater for several hours a day in winter. Also have a charging station and wifi it runs. Electric bill is $100 less per month. The mppt is really great. It will charge even on the cloudiest days. Very handy during 2 power outages already. For the money the value is unbeatable.
